Bluetooth in Linux

Bluetooth Architecture

Bluetooth is both a hardware-based radio system and a software stack.
The heart of this specification is the protocol stack, which is used to define how Bluetooth works. The Bluetooth protocol stack is a set of layered programs. Each layer in a protocol stack talks to the layer above it and to the layer below it.
Think of Bluetooth as having two well-defined layers of functionality in the stack:

the upper level software stack
the lower level hardware-based radio system

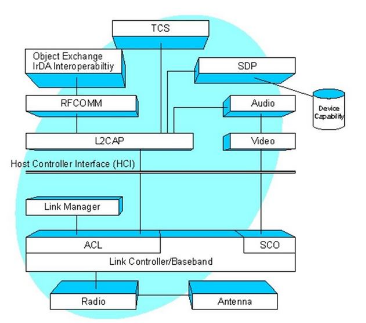

The illustration shows the layers from the Bluetooth specification shaded in gray:

There are two routes for audio:

a direct link between the baseband and the application layer
through the HCI(UART, USB,...)

The most chip/chip sets provide direct access to the baseband. Some, however, do not support audio across HCI. A common block diagram of the Bluetooth protocol stack:

the protocol layer

Logical Link Control and Adaptation Protocol (L2CAP)

Protocol Multiplexing
Segmentation & Reassembly
Quality of Service
Groups

piconets

SDP
RFCOMM(Radio frequency communication) protocol

RFCOMM client

RFCOMM server

Bluetooth Network Encapsulation Protocol (BNEP)
Telephony Control Protocol Specification, Binary (TCS binary)

HCI Interface

standardized Bluetooth interface

serial interface

RS232

USB

bridge the Host and Controller devices

Command Packet
Asynchronous Data Packet
Synchronous Data Packet
Event Packet

the radio system level

Bluetooth radio (layer)

transceiver

baseband and link control layer

channel processing and timing

the channel access control

Audio data

typically routed directly to and from the baseband layer over an SCO link

Link Manager Protocol (LMP)

link setup and link configuration between Bluetooth devices

Bluetooth in Android

Overview

Android provides a default Bluetooth stack that supports both Classic Bluetooth and Bluetooth Low Energy. Using Bluetooth, Android devices can create personal area networks to send and receive data with nearby Bluetooth devices.

A Bluetooth application communicates with the Bluetooth process through Binder. The Bluetooth process uses JNI to communicate with the Bluetooth stack.

Application framework
Bluetooth system service
JNI
Bluetooth stack
Vendor implementation

Hardware Interface Design Language (HIDL)

HIDL

The Bluetooth HAL is located in /hardware/libhardware/include/hardware/bluetooth.h. The bluetooth.h file contains the basic interface for the Bluetooth stack, and you must implement its functions.

Bluetooth Services

Linux Without Wires: The Basics of Bluetooth

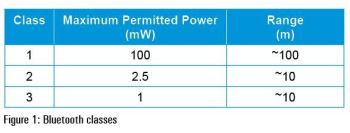

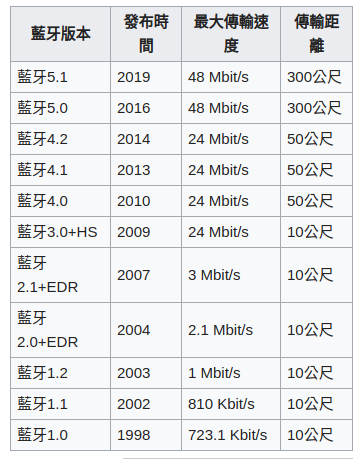

Bluetooth technology is used for short range (1 metre to 100 metres) communication. It is the most widespread wireless technology, and is divided into classes according to the power and communication range.

Bluetooth is a packet based protocol and has a master-slave structure. It works between the 2400MHz and the 2483.5MHz frequency range, and uses the frequency-hopping spread spectrum. Bluetooth divides data into packets and transmits them on one of the 79 designated channels. Each channel has a 1MHz bandwidth. Version 4.0 of Bluetooth has 40 channels, and each channel uses a 2MHz bandwidth.

Bluetooth stack

There are various types of Bluetooth stacks in the market like BlueZ, Bluedroid, Widcomm, Bluecode+, BlueLet, BlueMagic, etc.

A Bluetooth stack is software used to implement the Bluetooth host protocol stack. Bluetooth stack implementation can be of two types:

The first is a general-purpose implementation that is usually for desktop computers, and it is flexible because additional Bluetooth profiles can be added through drivers.
The second is an embedded system implementation, which is for devices where resources are limited, like peripheral devices.

BlueZ

BlueZ is a general-purpose Bluetooth stack that is used to implement the Bluetooth host protocol stack for Linux. It is open source software and the official Linux Bluetooth stack. You can download this software from http://www.bluez.org/ in the development section.

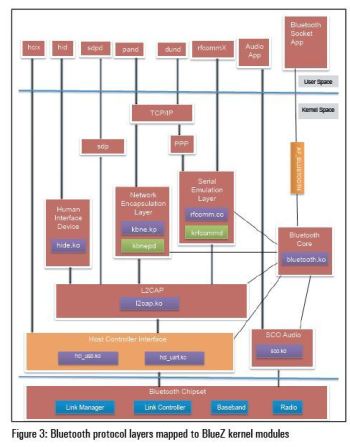

BlueZ maps Bluetooth protocol layers to kernel modules, kernel threads, user space daemons, configuration tools, utilities and libraries.

The main components of BlueZ are:

bluetooth.ko
Bluetooth HCI packets
The L2CAP layer of Bluetooth
bnep.ko
rfcomm.ko
hidp.ko
sco.ko

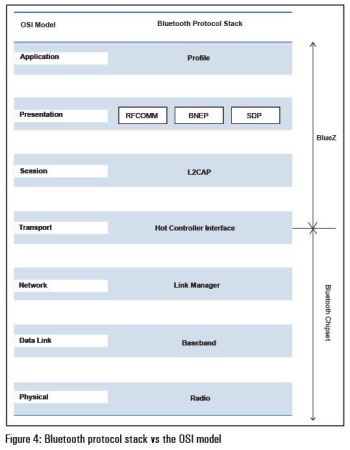

The Bluetooth protocol stack vs the OSI model

At the top of the stack reside various application environments called profiles. Since the radio, baseband and link manager are usually part of Bluetooth hardware, operating system support starts at the HCI layer:

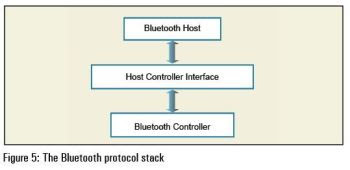

The Bluetooth protocol stack is divided into the host and controller, and interfaced by the host controller interface (HCI) layer

Bluetooth host

It includes implementations of the core Bluetooth protocols: the Bluetooth stack (or host protocol stack) and the high-level layers of the Bluetooth architecture, such as APIs and profiles. It has various layers and protocols like L2CAP, RFCOMM, SDP, etc.

L2CAP(Logical Link Control and Adaptation Protocol)

The capability to multiplex data between different higher layer protocols; hence, various protocols like RFCOM, SDP, etc, can operate over it
Segmentation and reassembly
Quality of service
It supports a group abstraction, enabling implementation for mapping a group on to a piconet

RFCOMM (Radio Frequency Communication)
SDP (Service Discovery Protocol)
Bluetooth profile

HSP (headset profile)
SPP (serial port profile)

HCI (Host Controller Interface)

Transfer data between the Bluetooth host and the Bluetooth controller.
It contains drivers which are abstracted to a small set of functions that send and receive commands, data packets and events.
There are four types of communication packet:

Command
Event
ACL data
Synchronous data

Bluetooth programming in C with BlueZ

Development Setup

Before coding, you need the development files for linking to the BlueZ library. For this you have to install the libbluetooth-dev package:

sudo apt-get install libbluetooth-dev

Searching Bluetooth devices

BlueZ exposes socket APIs that are similar to network socket programming. If you are familiar with network programming in Linux, learning the BlueZ APIs will be simple.

The basic data structure used to specify a 6-byte Bluetooth device address is bdaddr_t. In BlueZ, every Bluetooth address is stored as the bdaddr_t structure


typedef struct {
 uint8_t b[6];
} __attribute__((packed)) bdaddr_t;

A simple program scan_bt_devices.c that searches nearby Bluetooth devices :


#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/socket.h>

#include <bluetooth/bluetooth.h>
#include <bluetooth/hci.h>
#include <bluetooth/hci_lib.h>

int main(int argc, char **argv)
{
    inquiry_info *ii = NULL;
    int max_rsp, num_rsp;
    int dev_id, sock, len, flags;
    int i;
    char addr[19] = { 0 };
    char name[248] = { 0 };

    dev_id = hci_get_route(NULL);
    sock = hci_open_dev( dev_id );
    if (dev_id < 0 || sock < 0) {
        perror("opening socket");
        exit(1);
    }

    len  = 8;
    max_rsp = 255;
    flags = IREQ_CACHE_FLUSH;
    ii = (inquiry_info*)malloc(max_rsp * sizeof(inquiry_info));

    num_rsp = hci_inquiry(dev_id, len, max_rsp, NULL, &ii, flags);
    if( num_rsp < 0 ) perror("hci_inquiry");

    for (i = 0; i < num_rsp; i++) {
        ba2str(&(ii+i)->bdaddr, addr);
        memset(name, 0, sizeof(name));
        if (hci_read_remote_name(sock, &(ii+i)->bdaddr, sizeof(name), name, 0) < 0)
            strcpy(name, "[unknown]");
        printf("%s  %s\n", addr, name);
    }

    free( ii );
    close( sock );
    return 0;
}

The header files required

#include <bluetooth/bluetooth.h>
#include <bluetooth/hci.h>
#include <bluetooth/hci_lib.h>

Getting the Bluetooth adapter ID

dev_id = hci_get_route (NULL);.

Opening a file handle to the HCI

int sock = hci_open_dev(dev_id);

Prepare device's information memory

ii = (inquiry_info*) malloc(max_rsp * sizeof(inquiry_info));

typedef struct {
    bdaddr_t    bdaddr;
    uint8_t     pscan_rep_mode;
    uint8_t     pscan_period_mode;
    uint8_t     pscan_mode;
    uint8_t     dev_class[3];
    uint16_t    clock_offset;
} __attribute__ ((packed)) inquiry_info;

For the most part, only the first entry - the bdaddr field, which gives the address of the detected device - is of any use.
Occasionally, there may be a use for the dev_class field, which gives information about the type of device detected (i.e. if it's a printer, phone, desktop computer, etc.) and is described in the Bluetooth Assigned Number.
The rest of the fields are used for low level communication, and are not useful for most purposes.

scan for Bluetooth devices nearby

num_rsp = hci_inquiry(dev_id, len, max_rsp, NULL, &ii, flags);

8 for len, that is 10.24 seconds
255 for max_rsp

get the names of the devices

hci_read_remote_name(sock, &(ii+i)->bdaddr, sizeof(name), name, 0)

hci_read_remote_name

Build the code,

gcc scan_bt_devices.c -lbluetooth

Make sure your Bluetooth module is on before executing the built code.
rfkill lists, enabling and disabling wireless devices(Wi, Bluetooth):

list [id|type ...]

List

block id|type [...]

Disable

unblock id|type [...]

Enable

Essential Bluetooth Programming Concepts

Devices initiating an outgoing connection need to choose a target device and a transport protocol, before establishing a connection and transferring data.

Devices establishing an incoming connection need to choose a transport protocol, and then listen before accepting a connection and transferring data.

Choosing a Target Device

Every Bluetooth chip ever manufactured is imprinted with a globally unique 48-bit address, referred to as the Bluetooth address or device address.

The clients search nearby Bluetooth devices and checking the name of each device to find the target device and its associated device address.
Bluetooth devices will almost always have a user-friendly name, this needs to be translated to the device address in real communication.
Device discovery(inquiry) is the process of searching for and detecting nearby Bluetooth devices.

The device discovery process will usually take an average of 5 seconds before the phone detects the presence of the laptop, and it sometimes can take upward of 10–15 seconds.

All Bluetooth devices have two options that determine whether or not the device responds to device inquiries and
connection attempts:

Inquiry Scan
Page Scan

Choosing a Transport Protocol

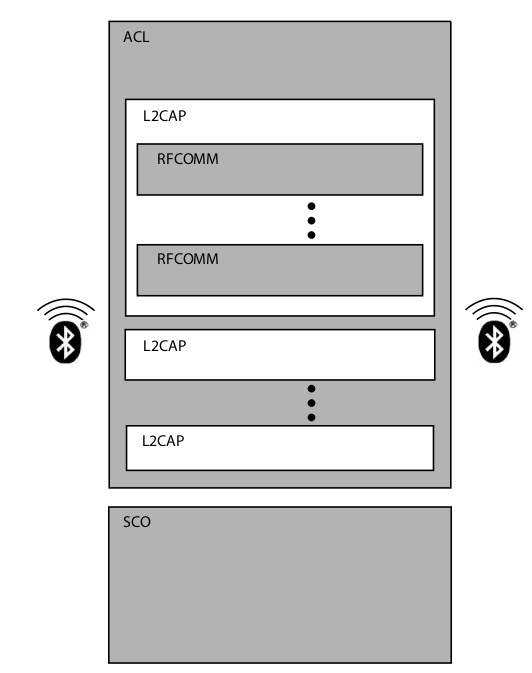

There are 4 major transport protocols and only 2 are likely to be used.

RFCOMM (Radio Frequency Communications)
L2CAP l (Logical Link Control and Adaption Protoco)
ACL ( Asynchronous Connection-oriented Logical)
SCO (Synchronous Connection-Oriented)

Port Numbers

L2CAP

Protocol Service Multiplexers

RFCOMM

Service Discovery Protocol

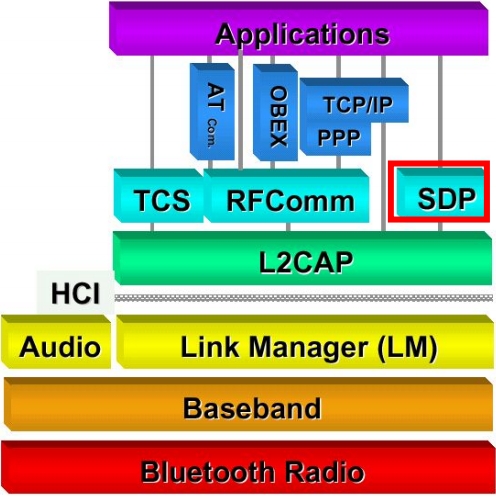

Every Bluetooth device maintains an SDP server listening on a well-known port number.
When a server application starts up, it registers a description of itself and a port number with the SDP server on the local device.
What the SDP server transmits to inquiring clients is referred to as a service record, also an SDP record.
The service record consists of a list of attribute/value pairs.
Except for the port number, the two most important attributes in a service record are the Service ID and the Service Class ID List.

Bluetooth assigns every single service a unique identifier, and assume that the client already knows the unique ID of the service it’s looking for.
The Bluetooth designers chose to allow every service to have a list of service classes that the service provides. So while a single service can have only one Service ID, it can have many Service Class IDs.

IETF has a standard method for developers to independently come up with their own 128-bit Universally Unique Identifiers (UUID).
The Bluetooth® Service Discovery Protocol (SDP) specification defines a way to represent a range of UUIDs (which are nominally 128 bits) in a "shorter form": 32 bits (denoted uuid32), or, 16 bits (denoted uuid16).
The Base UUID: is used for calculating 128-bit UUIDs from “short UUIDs” (uuid16 and uuid32) :

BASE_UUID = 00000000-0000-1000-8000-00805F9B34FB

 128 bit UUID = (uuid16 or uuid32) << 96 + Bluetooth Base UUID

Bluetooth defines several reserved attribute IDs that always have a special meaning, and the rest can be used arbitrarily. Some of the more common reserved attributes are:

Service Class ID List

only mandatory attribute

Name	UUID	Specification Allowed Usage
ServiceDiscoveryServerServiceClassID	0x1000	Bluetooth Core Specification Service Class
BrowseGroupDescriptorServiceClassID	0x1001	Bluetooth Core Specification Service Class
SerialPort	0x1101	Serial Port Profile (SPP)
...
(Max value 0xFFFF)

Service ID
Service Name
Service Description
Protocol Descriptor List
Protocol ID

Name	UUID	Protocol Specification
SDP	0x0001	Bluetooth Core Specification
UDP	0x0002	[NO USE BY PROFILES]
RFCOMM	0x0003	RFCOMM with TS 07.10
TCP	0x004	[NO USE BY PROFILES]
...
(Max value 0xFFFF)

Profile Descriptor List
Service Record Handle

Communicating via Sockets

Given the address of a device, the transport protocol, and the port, Bluetooth programming is essentially the socket programming. In Bluetooth programming, we’ll almost always be creating either L2CAP or RFCOMM sockets.

Useful Things to Know about Bluetooth

Both 802.11 and Bluetooth use the 2.45-GHz band for communication, but Blue-tooth divides the band into 79 channels, whereas 802.11 divides the band into 14 channels. Another major difference is that a single 802.11 network typically picks a channel and stays with it, whereas devices on a Bluetooth piconet change radio frequencies very rapidly. An actively communicating Bluetooth device changes channels every 625 μs (1600 times per second). It tries to do this in a random order so that no one channel is used much more than any other channel.

Supposedly, all this hopping around makes Bluetooth more robust to interference from nearby sources of evil radio waves, and allows for many Blue-tooth networks to coexist in the same place.

Bluetooth Networks

Two or more Bluetooth devices that are communicating with each other and using the same channel-hopping configuration to form a Bluetooth piconet.

A piconet can have up to eight devices in total.
One device on every piconet is designated as the master which tells other slave devices which frequencies to be used
The master of a piconet essentially informs every device when to transmit and when to keep quiet. Every device will always have its turn to transmit.
All of this network formation and master–slave role selection is handled automatically by Blue-tooth hardware and low-level device drivers.

Security

Two Bluetooth devices can conduct an authentication procedure, where they verify their respective identities. Once authenticated, they have the option of encrypting all data packets they exchange. The first time two devices go through authentication or encryption is known as the pairing procedure:

First, a common PIN must be given to the devices
Next, each device uses the PIN to generate a link key.
Once two devices have been paired, applications on each device can request authentication or encryption as needed.

Most devices are without input capabilities, the Simple Pairing procedure is introduced since Bluetooth 2.1:

the PIN is automatically generated
the user is only prompted to accept or reject a pairing

Profiles

Bluetooth Profiles define standardized ways to perform high-level application tasks such as transferring files, playing music, using nearby printers, and so on. You can find the specification and all the details for that particular profile on the Bluetooth Web site

Host Controller Interface

The Host Controller Interface (HCI) defines how a computer (the Host) interacts and communicates with a local Bluetooth adapter (the Controller). All communications that occur between the two are encapsulated within HCI packets:

Command packet
Event packet
ACL(Asynchronous Connection-Less) data packet
Synchronous data packet

Limitations – Things Bluetooth Can’t Do

Few capabilities are not in Bluetooth:

Announce the presence of a device
Detect when a remote device is inquiring for nearby devices
Determine the Bluetooth address of an inquiring device
Distance to a remote Bluetooth device
Broadcast messages

Device Discovery Explained

Bluetooth splits the 2.4-GHz band into 79 channels, 32 in these are used for detecting nearby devices and establishing connections. An inquiring device transmits inquiry messages on these channels, and a discoverable Bluetooth device periodically listens for and replies to the inquiry messages.

Inquiring for Nearby Devices

10.24 s

Listening for Incoming Connections/Inquiries

inquiry scan interval

inquiry scan window

C Programming With GNU/Linux

Choosing a Communication Target

simplescan.c:


#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/socket.h>

#include <bluetooth/bluetooth.h>
#include <bluetooth/hci.h>
#include <bluetooth/hci_lib.h>


int main ( int argc , char * * argv )
{
    inquiry_info *devices = NULL;
    int max_rsp, num_rsp;
    int adapter_id , sock , len , flags;
    int i;
    char addr[19] = { 0 };
    char name[248] = { 0 };

    adapter_id = hci_get_route(NULL);
    sock = hci_open_dev( adapter_id );
    if (adapter_id < 0 || sock < 0) {
        perror("opening socket");
        exit(1);
    }

    len  = 8;
    max_rsp = 255;
    flags = IREQ_CACHE_FLUSH;
    devices = (inquiry_info*)malloc(max_rsp * sizeof(inquiry_info));

    num_rsp = hci_inquiry(adapter_id, len, max_rsp, NULL, &devices, flags);
    if( num_rsp < 0 ) perror("hci_inquiry");

    for (i = 0; i < num_rsp; i++) {
        ba2str(&(devices+i)->bdaddr, addr);
        memset(name, 0, sizeof(name));
        if (hci_read_remote_name(sock, &(devices+i)->bdaddr, sizeof(name), name, 0) < 0)
            strcpy(name, "[unknown]");
        printf("%s  %s\n", addr, name);
    }

    free( devices );
    close( sock );
    return 0;
}

Build the code:

gcc −o simplescan simplescan.c -lbluetooth

Representing Bluetooth Addresses

typedef struct {
  uint8_t b[6];
} __attribute__((packed)) bdaddr_t ;

bdaddr_t

str2ba

ba2str

bdaddr_t

Choosing and Opening a Local Bluetooth Adapter

hci_get_route()

hci_open_dev()

Device Discovery

hci_inquiry

devices

int hci_inquiry(int dev_id, int len, int nrsp, const uint8_t *lap, inquiry_info **devs, long flags)

devs

inquiry_info

typedef struct {
    bdaddr_t    bdaddr;
    uint8_t     pscan_rep_mode;
    uint8_t     pscan_period_mode;
    uint8_t     pscan_mode;
    uint8_t     dev_class[3];
    uint16_t    clock_offset;
} __attribute__ ((packed)) inquiry_info;

bdaddr

dev_class

flags

Name Lookup

int hci_read_remote_name(int hci_sock, const bdaddr_t *ba, int len,
                         char *name, int timeout)

Error Handling

RFCOMM Sockets

rfcomm-server.c:


#include <stdio.h>
#include <unistd.h>
#include <sys/socket.h>
#include <bluetooth/bluetooth.h>
#include <bluetooth/rfcomm.h>

int main(int argc, char **argv)
{
    struct sockaddr_rc loc_addr = { 0 }, rem_addr = { 0 };
    char buf[1024] = { 0 };
    int s, client, bytes_read;
    socklen_t opt = sizeof(rem_addr);

    // allocate socket
    s = socket(AF_BLUETOOTH, SOCK_STREAM, BTPROTO_RFCOMM);

    // bind socket to port 1 of the first available
    // local bluetooth adapter
    loc_addr.rc_family = AF_BLUETOOTH;
    loc_addr.rc_bdaddr = *BDADDR_ANY;
    loc_addr.rc_channel = (uint8_t) 1;
    bind(s, (struct sockaddr *)&loc_addr, sizeof(loc_addr));

    // put socket into listening mode
    listen(s, 1);

    // accept one connection
    client = accept(s, (struct sockaddr *)&rem_addr, &opt);

    ba2str( &rem_addr.rc_bdaddr, buf );
    fprintf(stderr, "accepted connection from %s\n", buf);
    memset(buf, 0, sizeof(buf));

    // read data from the client
    bytes_read = read(client, buf, sizeof(buf));
    if( bytes_read > 0 ) {
        printf("received [%s]\n", buf);
    }

    // close connection
    close(client);
    close(s);
    return 0;
}

rfcomm-client.c


#include <stdio.h>
#include <unistd.h>>
#include <sys/socket.h>
#include <bluetooth/bluetooth.h>
#include <bluetooth/rfcomm.h>

int main(int argc, char **argv)
{
    struct sockaddr_rc addr = { 0 };
    int s, status;
    char dest[18] = "01:23:45:67:89:AB";

    // allocate a socket
    s = socket(AF_BLUETOOTH, SOCK_STREAM, BTPROTO_RFCOMM);

    // set the connection parameters (who to connect to)
    addr.rc_family = AF_BLUETOOTH;
    addr.rc_channel = (uint8_t) 1;
    str2ba( dest, &addr.rc_bdaddr );

    // connect to server
    status = connect(s, (struct sockaddr *)&addr, sizeof(addr));

    // send a message
    if( status == 0 ) {
        status = write(s, "hello!", 6);
    }

    if( status < 0 ) perror("uh oh");

    close(s);
    return 0;
}

Addressing Structures

Like the struct sockaddr_in used in TCP/IP programming, the sockaddr_rc addressing structure is required.

struct sockaddr_rc {
 sa_family_t rc_family;
 bdaddr_t rc_bdaddr;
 uint8_t  rc_channel;
};

rc_bdaddr and rc_channel specify the Bluetooth address and port number. The rc_channel field of the socket addressing structure used to bind the socket is simply set to 0, and the kernel binds the socket to the first available port.

A note on byte ordering

Unlike network byte ordering, which uses a big-endian format, Bluetooth byte ordering is little-endian, where the least significant bytes are transmitted first. BlueZ provides four convenience functions to convert between host and Bluetooth byte orderings:

unsigned short int htobs( unsigned short int num );
unsigned short int btohs( unsigned short int num );
unsigned int htobl( unsigned int num );
unsigned int btohl( unsigned int num );

L2CAP Sockets

Using L2CAP sockets is quite similar to using RFCOMM sockets, with the major differences being in the

addressing structure

struct sockaddr_l2 {
    sa_family_t     l2_family;
    unsigned short  l2_psm;
    bdaddr_t        l2_bdaddr;
};

l2_family
l2_psm
l2_bdaddr

s = socket( AF_BLUETOOTH , SOCK_SEQPACKET , BTPROTO_L2CAP ) ;

the availability of a few more options to control

struct l2cap_options {
    uint16_t    omtu;
    uint16_t    imtu;
    uint16_t    flush_to;
    uint8_t     mode;
};

Maximum Transmission Unit

int set_l2cap_mtu( int sock, uint16_t mtu ) {
 struct l2cap_options opts;
    int optlen = sizeof(opts), err;
    err = getsockopt( s,  SOL_L2CAP,  L2CAP_OPTIONS, &opts, &optlen );
    if( ! err ) {
        opts.omtu = opts.imtu = mtu;
        err = setsockopt( s,  SOL_L2CAP,  L2CAP_OPTIONS, &opts, optlen );
    }
    return err;
};

more ports

Service Discovery Protocol

The hard-coded port numbers is not a good long-term solution. Searching a specific device for a service also involves two steps:

searching a device for a service


#include <bluetooth/bluetooth.h>
#include &ltbluetooth/sdp.h>
#include &ltbluetooth/sdp_lib.h>

int main(int argc, char **argv)
{
    uint8_t svc_uuid_int[] = { 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,
        0, 0, 0xab, 0xcd };
    uuid_t svc_uuid;
    int err;
    bdaddr_t target;
    sdp_list_t *response_list = NULL, *search_list, *attrid_list;
    sdp_session_t *session = 0;

    str2ba( "01:23:45:67:89:AB", &target );

    // connect to the SDP server running on the remote machine
    session = sdp_connect( BDADDR_ANY, &target, SDP_RETRY_IF_BUSY );

    // specify the UUID of the server's service we're searching for
    sdp_uuid128_create( &svc_uuid, &svc_uuid_int );
    search_list = sdp_list_append( NULL, &svc_uuid );

    // specify service's attributes that we want the search for matching
    uint32_t range = 0x0000ffff;
    attrid_list = sdp_list_append( NULL, &range );

    // get a list of service records that have UUID 0xabcd
    err = sdp_service_search_attr_req( session, search_list, \
            SDP_ATTR_REQ_RANGE, attrid_list, &response_list);

uuid_t

uuid t *sdp_uuid128_create( uuid_t * uuid , const void * data ) ;
uuid t *sdp_uuid32_create( uuid_t * uuid , uint32_t data ) ;
uuid t *sdp_uuid16_create( uuid_t * uuid , uint16_t data ) ;

sdp_list_t

typedef struct sdp_list sdp_list t;
struct sdp_list {
  sdp list_t * next ;
  void * data ;
} ;

sdp_list_t *sdp_list_append(sdp_list_t *list, void *d);

sdp_list_t *sdp_list_append(sdp_list_t *p, void *d)
{
        sdp_list_t *q, *n = malloc(sizeof(sdp_list_t));

        if (!n)
                return NULL;

        n->data = d;
        n->next = 0;

        if (!p)
                return n;

        for (q = p; q->next; q = q->next);
        q->next = n;

        return p;
}
The 1st element is created when p is NULL in the sdp_list_t.

sdp_list_t *sdp_list_free(sdp_list_t *list, sdp_list_func_t f);

/*
 * Profile descriptor is the Bluetooth profile metadata. If a
 * service conforms to a well-known profile, then its profile
 * identifier (UUID) is an attribute of the service. In addition,
 * if the profile has a version number it is specified here.
 */
typedef struct {
 uuid_t uuid;
 uint16_t version;
} sdp_profile_desc_t;

/*
 * Set the profile descriptor list attribute of a record.
 *
 * Each element in the list is an object of type
 * sdp_profile_desc_t which is a definition of the
 * Bluetooth profile that this service conforms to.
 */
int sdp_set_profile_descs(sdp_record_t *rec, const sdp_list_t *desc);

/*
 * Extract the Bluetooth profile descriptor(uuid, version) sequence from a record.
 * Each element in the list is of type sdp_profile_desc_t
 * which contains the UUID of the profile and its version number
 * (encoded as major and minor in the high-order 8bits
 * and low-order 8bits respectively of the uint16_t)
 */
int sdp_get_profile_descs(const sdp_record_t *rec, sdp_list_t **profDesc);

typedef struct {
 uint32_t handle;

 /* Search pattern: a sequence of all UUIDs seen in this record */
 sdp_list_t *pattern;
 sdp_list_t *attrlist;

 /* Main service class for Extended Inquiry Response */
 uuid_t svclass;
} sdp_record_t;

sdp_session_t *sdp_connect(const bdaddr_t *src, const bdaddr_t *dst, uint32_t flags);

#define SDP_RETRY_IF_BUSY 0x01
#define SDP_WAIT_ON_CLOSE 0x02
#define SDP_NON_BLOCKING 0x04

int sdp_service_search_attr_req(sdp_session_t *session, const sdp_list_t *search, sdp_attrreq_type_t reqtype, const sdp_list_t *attrid_list, sdp_list_t **rsp_list);

service search

service attribute

0x0000ffff

parsing and interpreting an SDP search result


    sdp_list_t *r = response_list;

    // go through each of the service records
    for (; r; r = r->next ) {
        sdp_record_t *rec = (sdp_record_t*) r->data;
        sdp_list_t *proto_list;

        // get a list of the protocol sequences
        if( sdp_get_access_protos( rec, &proto_list ) == 0 ) {
        sdp_list_t *p = proto_list;

        // go through each protocol sequence
        for( ; p ; p = p->next ) {
            sdp_list_t *pds = (sdp_list_t*)p->data;

            // go through each protocol of the protocol sequence
            for( ; pds ; pds = pds->next ) {

                // check the protocol attributes
                sdp_data_t *d = (sdp_data_t*)pds->data;
                int proto = 0;
                for( ; d; d = d->next ) {
                    switch( d->dtd ) {
                        case SDP_UUID16:
                        case SDP_UUID32:
                        case SDP_UUID128:
                            proto = sdp_uuid_to_proto( &d->val.uuid );
                            break;
                        case SDP_UINT8:
                            if( proto == RFCOMM_UUID ) {
                                printf("rfcomm channel: %d\n",d->val.int8);
                            }
                            break;
                    }
                }
            }
            sdp_list_free( (sdp_list_t*)p->data, 0 );
        }
        sdp_list_free( proto_list, 0 );

        }

        printf("found service record 0x%x\n", rec->handle);
        sdp_record_free( rec );
    }

    sdp_close(session);
}

sdp_record_t

typedef struct {
 uint32_t handle;
 sdp_list_t *pattern;
 sdp_list_t *attrlist;
} sdp_record_t;

sdp_get_access_protos

int sdp_get_access_protos(const sdp_record_t *rec, sdp_list_t **protos);

sdp_data_t

service record

typedef struct sdp_data_struct sdp_data_t;

struct sdp_data_struct {
  uint8_t dtd;
  uint16_t attrId;
  union {
   int8_t    int8;
   int16_t   int16;
   int32_t   int32;
   int64_t   int64;
   uint128_t int128;
   uint8_t   uint8;
   uint16_t  uint16;
   uint32_t  uint32;
   uint64_t  uint64;
   uint128_t uint128;
   uuid_t    uuid;
   char     *str;
   sdp_data_t *dataseq;
  } val;
  sdp_data_t *next;
  int unitSize;
};

int sdp_attr_add(sdp_record_t *rec, uint16_t attr, sdp_data_t *data);

data

attr

rec

void sdp_attr_remove(sdp_record_t *rec, uint16_t attr);
void sdp_attr_replace(sdp_record_t *rec, uint16_t attr, sdp_data_t *data);

Advertising a Service

sdpd

building the service record

registering it with the local SDP server

service record

single service

Device ID

Service Record

PrimaryRecord

building the service record


#include <bluetooth/bluetooth.h>
#include <bluetooth/sdp.h>
#include <bluetooth/sdp_lib.h>

int main ( )
{
sdp session t * session = register service ( ) ;

sleep ( 5 ) ;
sdp_close( session ) ;
return 0 ;
}

sdp_session_t *register_service()
{
    uint32_t service_uuid_int[] = { 0, 0, 0, 0xABCD };
    uint8_t rfcomm_channel = 11;
    const char *service_name = "Roto-Rooter Data Router";
    const char *service_dsc = "An experimental plumbing router";
    const char *service_prov = "Roto-Rooter";

    uuid_t root_uuid, l2cap_uuid, rfcomm_uuid, svc_uuid;
    sdp_list_t *l2cap_list = 0,
               *rfcomm_list = 0,
               *root_list = 0,
               *proto_list = 0,
               *access_proto_list = 0;
    sdp_data_t *channel = 0, *psm = 0;

    sdp_record_t *record = sdp_record_alloc();

    // set the general service ID
    sdp_uuid128_create( &svc_uuid, &service_uuid_int );
    sdp_set_service_id( record, svc_uuid );

    // make the service record publicly browsable
    sdp_uuid16_create(&root_uuid, PUBLIC_BROWSE_GROUP);
    root_list = sdp_list_append(0, &root_uuid);
    sdp_set_browse_groups( record, root_list );

    // set l2cap information
    sdp_uuid16_create(&l2cap_uuid, L2CAP_UUID);
    l2cap_list = sdp_list_append( 0, &l2cap_uuid );
    proto_list = sdp_list_append( 0, l2cap_list );

    // set rfcomm information
    sdp_uuid16_create(&rfcomm_uuid, RFCOMM_UUID);
    channel = sdp_data_alloc(SDP_UINT8, &rfcomm_channel);
    rfcomm_list = sdp_list_append( 0, &rfcomm_uuid );
    sdp_list_append( rfcomm_list, channel );
    sdp_list_append( proto_list, rfcomm_list );

    // attach protocol information to service record
    access_proto_list = sdp_list_append( 0, proto_list );
    sdp_set_access_protos( record, access_proto_list );

    // set the name, provider, and description
    sdp_set_info_attr(record, service_name, service_prov, service_dsc);

registering services with the local SDP server

int err = 0;
    sdp_session_t *session = 0;

    // connect to the local SDP server, register the service record, and
    // disconnect
    session = sdp_connect( BDADDR_ANY, BDADDR_LOCAL, SDP_RETRY_IF_BUSY );
    err = sdp_record_register(session, record, 0);

    // cleanup
    sdp_data_free( channel );
    sdp_list_free( l2cap_list, 0 );
    sdp_list_free( rfcomm_list, 0 );
    sdp_list_free( root_list, 0 );
    sdp_list_free( access_proto_list, 0 );

    return session;
}

BDADDR_LOCAL

sdp_connect()

留言

Unknown寫道…

Great job

2022年4月26日上午9:15

搜尋此網誌

I'm Jay's father

Bluetooth in Linux

Bluetooth Architecture

Bluetooth in Android

Overview

Bluetooth Services

Linux Without Wires: The Basics of Bluetooth

Bluetooth stack

BlueZ

The Bluetooth protocol stack vs the OSI model

Bluetooth host

HCI (Host Controller Interface)

Bluetooth programming in C with BlueZ

Development Setup

Searching Bluetooth devices

Essential Bluetooth Programming Concepts

Choosing a Target Device

Choosing a Transport Protocol

Port Numbers

Service Discovery Protocol

Communicating via Sockets

Useful Things to Know about Bluetooth

Bluetooth Networks

Security

Profiles

Host Controller Interface

Limitations – Things Bluetooth Can’t Do

Device Discovery Explained

C Programming With GNU/Linux

Choosing a Communication Target

RFCOMM Sockets

Addressing Structures

A note on byte ordering

L2CAP Sockets

Service Discovery Protocol

留言

熱門文章

Linux Modem Manager

A Tutorial on the Device Tree
