Computer Organization, MSIT – 107

by

Karnataka State Open University
Mukthagangothri, Mysore – 570 006
Second Semester M.Sc in Information Technology
Data Base Management Systems

Preface

An overview of Computer Organization for the Second Semester course in Master Science (IT) curricula.

Intoduction to Computer Organization

Unit – 1 COMPUTER ORGANIZATION AND ARCHITECTURE

A computer in its simplest form consists of five components.

The control unit controls all activities taking place inside a computer:

• accepts information (program and data) through input unit and transfers it to the memory
• information stored in the memory is fetched into an arithmetic and logic unit for processing
• Processed information leaves the computer through an output unit

The processor also contains a number of registers used for various purposes.
For e.g., temporary storage of data such as :

• the Instruction Register (IR)
This contains the instruction that is currently being executed. Its output is available to the control circuit that generates the timing signals for control of the actual processing circuit needed to execute the instruction.
• the Program Counter (PC)
A register contains the memory address of the instruction currently being executed. During the execution of the current instruction, the content of program counter is updated to correspond to the address of the next instruction.
• the Memory Address Register (MAR)
This holds the address of the memory location to or from which data is to be transferred.
• Memory Data Register (MDR)
This contains the data to be written into or read-out of the addressed of memory location.
• the general-purpose registers
These are used for holding data, intermediate results of operations.

Operating steps involving instruction fetch and execution:

• Instruction fetch
• the PC is set to point to the instruction to be executed
• The contents of PC are transferred to the MAR and a Read control signal is sent to the memory
• The content is read out from the addressed memory and loaded into the MDR
• The contents of MDR are transferred to the IR for instruction decoding
• Instruction execution
• The operation field of the instruction in IR is examined to determine the instruction type to be performed by the ALU
• the operand(s) of the instruction are obtained from the memory locations or from GP registers
• The ALU performs the desired operation on one or more operands and sends the result either to memory location or to a GP register.
The result is sent to MDR and the address of the location where the result is to be stored is sent to MAR and Write cycle is initiated.

Thus, the execute cycle ends for the current instruction and the PC is incremented to point to the next instruction for a new fetch cycle.

"Computer organization" and "computer architecture" are related terms in the field of computer science, but they refer to different aspects of a computer system.
Here are the key differences between computer organization and computer architecture:

• Computer Organization
• Computer organization refers to the way a computer's hardware components are connected and operate to achieve a specific goal.
• It focuses on the physical components of a computer system, such as the central processing unit (CPU), memory units, input/output (I/O) devices, buses, and control units.
• Computer organization deals with low-level details, including data paths, control signals, timing diagrams, and circuit design.
• It involves the arrangement of various hardware components to ensure that the computer system functions efficiently and effectively.
• Computer organization often influences factors like hardware cost, performance, power consumption, and reliability.
• Computer Architecture
• Computer architecture refers to the design and structure of a computer system, including its instruction set architecture (ISA), memory hierarchy, and system organization.
• It focuses on the high-level attributes of a computer system that affect its performance, functionality, and compatibility.
• Computer architecture defines the ISA, which specifies the set of instructions that a computer can execute and the way these instructions are encoded.
• It encompasses concepts like pipelining, caching, parallel processing, and memory management.
• Computer architecture determines how software interacts with hardware and how various hardware components collaborate to execute programs.
• Changes in computer architecture can have a significant impact on the overall performance and capabilities of a computer system.

In essence, computer organization deals with the implementation and arrangement of hardware components at the physical level, while computer architecture deals with the high-level design and attributes of a computer system that influence its behavior, performance, and functionality. Both computer organization and computer architecture are crucial areas of study for computer scientists and engineers to understand how computers work and how to design efficient and effective computing systems.

A computer's architecture is its abstract model and is the programmer's view in terms of instructions, addressing modes and registers.

Unit – 2 COMPUTER STRUCTURES

A Computer consists of a set of components (CPU, I/O, memory) that communicates with each other via the inter-connection structures.
The design of this structure will depend on the type of exchange/transfer that must be made between modules:

• Memory to CPU
• CPU to Memory
• I/O to CPU
• CPU to I/O
• I/O to or from Memory (Direct Memory Access (DMA))

A Bus is a collection of distinct lines meant to carry data, address and control information.
The different functional units of a computer can be connected through a bus structure:

• Single-bus Structure

• Two-bus Structure
The I/O transfers are always under the direct control of the processor,

A special purpose processor called peripheral processor is used for providing the necessary controls over the actual I/O data transfer to/from the memory.

A byte is always 8 bits, but the word length typically ranges from 16 to 64 bits.
A main memory word can also be used to represent an instruction.

Here,

• the 8 bit operation field can encode 28 (256) distinct instructions
• Addressing information is given in a variety of ways.
The different ways in which operands can be named in machine instructions are called addressing modes.

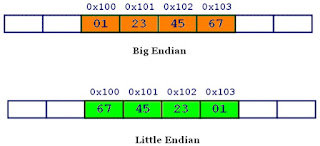

Little and big-endian are two ways of storing multibyte data-types ( int, float, etc) in a word.

• In little-endian machines, last byte of binary representation of the multibyte data-type is stored first. (last first in address)
• in big-endian machines, first byte of binary representation of the multibyte data-type is stored last.(most first in address)

Suppose integer is stored as 4 bytes (assuming integer is 2 bytes) then a variable x with value 0×01234567 will be stored as following.

Unit – 3 MAIN MEMORY OPERATIONS

To execute an instruction, there are two basic operations involving the main memory are needed namely,

• Load (or Fetch or Read)
The CPU sends the address of the desired location to the main memory and requests to read its contents.
The main memory reads the data stored at that address and sends them to the CPU.
• Store (or Write)
The CPU sends the address of the desired location to the main memory, together with the data to be written to that location.

There are five types of instruction formats in a computer that are commonly used, namely:

• Three-address instruction format
C = A + B is a high level instruction to add the values of the two variables A and B and to assign the sum to a third variable C.
To carry out this instruction, the contents of the memory locations A and B are fetched from the main memory and transferred into the processor – sum is computed – result is sent back to memory and stored in location C.
The same action is performed by a single machine instruction (three address instruction)

Add A,B,C


• Two-address instruction format
• One-address instruction format
The accumulator is used to temporarily store data during computations.
• Zero-address instruction format
A stack is a list of data elements, usually words or bytes, in which these elements can be added or removed through the top of the stack by following the LIFO (last-in-first-out) storage mechanism.
A processor register called stack pointer(SP) is used to keep track of the address of the element at the top of the stack at any given time.
• One-and-half address instruction format

Branch instruction loads a new value into the program counter. As a result, the processor fetches and executes the instruction at this new address.
The processor keeps track of some information about the results of various operations for use by subsequent conditional branch instructions.
This is done by recording the required information into individual bits called as condition code flags.
In some processors, these flags are grouped together in a special register called the condition code register or status register.
Four commonly used flags are:

• N (negative)
Sets to 1 if the result is negative; otherwise, cleared to 0
• Z (zero)
Sets to 1 if the result is 0; otherwise, cleared to 0
• V (overflow)
Sets to 1 if arithmetic overflow occurs; otherwise, cleared to 0
• C (carry)
Sets to 1 if carry-out results from the operation; otherwise, cleared to 0

Unit – 4 ADDRESSING MODES AND ASSEMBLY LANGUAGE

The term addressing mode refers to the way used in the operand of an instruction.

• Register mode
The operand is the contents of a CPU register; the name of register is given in the instruction.
E.g.

  	Move R1,R2


The contents of R1 is transferred to R2
• Absolute mode (Direct mode)
The operand is in a memory location.
The address of the memory location is explicitly given in the instruction.
E.g.

  	Add A,B


The contents of the memory location A is added to the contents of the memory location B. The addresses of A and B are given in the instruction itself.
• Immediate mode
The operand is given explicitly in the instruction.
This mode is used in specifying address and data constants in programs.
E. g.

  	Move #200, R0


This instruction places the value 200 in register R0.
• Indirect mode
Here the instruction does not give the operand or its address explicitly.
The register or memory location that contains the address of the operand is called a pointer. We denote indirection by placing the name of the register or the memory address given in the instruction in parenthesis
• Index mode
In this mode, the effective address of the operand is generated by adding a constant value to the contents of a register.
The register used may be a special register provided for this purpose or may be any one of the general purpose register – referred to as an Index Register.
• Relative mode
• Autoincrement mode
The effective address of the operand is the contents of a register specified in the instruction. After accessing the operand, the contents of the register is automatically incremented to point to the next item in a list.
• Autodecrement mode
The contents of a register specified in the instruction are decremented.

The assembly programming language also allows the programmer to specify other information which is essential to translate the source program into object program. Such statements in a program are called assembler directives or commands.

Module 2 Basic processing Unit

Unit – 5 FUNDAMENTAL CONCEPTS

The processing unit is called central processing unit (CPU).
This is also called a processor or instruction set processor (ISP).
It executes machine instructions and coordinates the activities of other units.

To execute a program,

• the CPU fetches one instruction at a time and performs the functions specified.
• Until a branch or a jump instruction is executed, instructions are fetched from successive memory locations.
• The address of the next instruction to be executed is kept by the CPU in a dedicated register called program counter (PC).
• The contents of the PC are updated to point to the next instruction in the sequence.

Therefore, one instruction execution requires the CPU to perform the following 3 steps:

1. Fetch the contents of the memory location by the PC into instruction register (IR)
2. Increment the contents of the PC by 1
3. Carry out the actions specified by the instruction in the IR.

This example shows an organization in which the arithmetic and logic unit (ALU) and all the registers are interconnected via a single common bus.

The address and data lines of the external memory bus shown in the above connected to the internal processor bus via the memory data register (MDR) and the memory address register (MAR) respectively.

As instruction execution progresses, data are transferred from one register to another, often passing through the ALU to perform some arithmetic or logic operation.
The instruction decoder and control logic unit is responsible for implementing the actions specified by the instruction loaded in the IR register:

• generates the control signals needed to select the registers involved
• direct the transfer of content on registers

The registers, the ALU, and the interconnecting bus are collectively referred to as the datapath because the data transferr is involved in them .

A data transfer in which one device initiates the transfer and waits until the other device responds (with an MFC signal) is referred to as an asynchronous transfer:


1 MAR ← [R1]
2 Request memory READ and put the data to the address register
3 Wait for the Memory Fetch Cycle (MFC) signal and put the result from [MDR] to
R2.
4 R2 ←[MDR]

Storing a Word in Memory:

1 MAR ← [R1]
2 MDR ←[R2]
3 Request memory WRITE
4 Wait for MFC signal

For each register, two control signals are used:

• to place the contents of that register on the bus, or
• to load the data on the bus into the register.

the input and output of register Ri are connected to the bus via switches.
Suppose that we wish to transfer the contents of register R1 to register R4:

• Enable the output of register R1
This places the contents of R1 on the processor bus.
• Enable the input of register R4
This loads data from the processor bus into register R4.

The ALU is a combinational circuit that has no internal storage.
It performs arithmetic and logic operations on the two operands applied to its‘ A and B inputs.

Unit – 6 PERFORMANCE CONSIDERATIONS

Three of the most important factors in computer's performance are :

• the power of the instruction
A powerful instruction performs a complex multistep task, at the cost of several clock cycles for execution.
• the clock cycle time, and
• the number of clock cycle per instruction.

All general-purpose registers are combined into a single block called the register file.

Unit – 7 HARD-WIRED CONTROL

Unit – 8 MICROPROGRAMMED CONTROL

Mdule 3 Input-Output Organization

Unit – 9 INTRODUCTION TO INPUT/OUTPUT DEVICES

A simple arrangement to connect I/O devices to a computer is to use a single bus arrangement, it consists of three sets of lines used to carry address, data, and control signals.

• Each I/O device is assigned a unique set of addresses.
• When the processor places a particular address on the address lines, the device that recognizes this address responds to the commands(read, write) issued on the control lines.

When I/O devices and the memory share the same address space, the arrangement is called memory-mapped I/O.

With memory-mapped I/O, any machine instruction that accesses memory can be used to transfer data to or from an I/O device.

Unit – 10 INTERRUPTS

Unit – 11 DIRECT MEMEORY ACCESS

Unit –12 I/O HARDWARE AND STANDARD I/O INTERFACES

Module 4 System Memory

Unit – 13 BASIC CONCEPTS

Unit – 14 SEMICONDUCTOR RAM MEMORIES

Unit – 15 CACHE MEMORIES

Unit – 16 VIRTUAL MEMORIES
